New product information

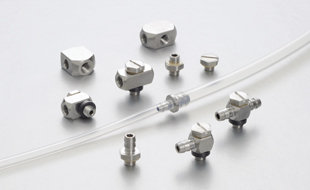

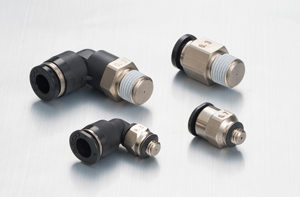

Fixed throttle of built-in one-touch fittings. Add φ0.1 mm, the φ0.2 mm: orifice diameter!

Fittings Standard & Mini fixed throttle

2013/11

2013/11/29

Add φ0.1mm, the φ0.2 mm: orifice diameter!
Orifice diameter: up to a maximum from the minimum φ2.0mm φ0.1mm, selectable in increments of 0.1mm.
Can be installed in a small space.
(Mini only) debuts M5 screw type. Also supports compact piping.
Compared to the needle valve, low-cost.

Easily! Complex piping work New model appeared in color cap.

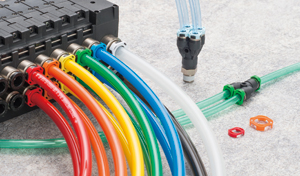

Color cap (new models)

2013/10

2013/10/16

One-touch fitting the open ring is adjacent: to (union type Wye and PY), can be mounted to!
Was not possible with the current product, color cap attachment to model the open ring is adjacent is now possible.
The color is all 10 colors.
The combined color tube, piping work much easier.

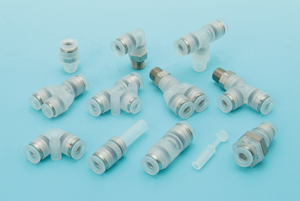

Inch size debuts! Ideal for tube fitting PP type to clean environment.

PP tube fitting type (inch size)

2013/09

2013/10/16

The body material, I adopt the PP suitable for clean environment.
Resin color of the body can be confirmed clear (translucent), fluid (liquid).
Confirmation of hygiene is also easy.
In oil-free specification, meet the various needs.
Rich material, specification.
· SUS304 screws or parts material → PP resin
and rubber Material → Standard specification: FKM, HNBR, NBR: EPDM, option
(clean air after cleaning, packaged in 6 or equivalent) in (ISO class clean room and packaging specification → Normal packing, clean room packaging After performing vacuum ultrasonic cleaning with (HFE (hydrofluoroether in a clean room) Clean cleaning specification), or vacuum-packed)

Has achieved high visibility easy-to-read screen LCD2, by three-color display, sensors □ 30mm.

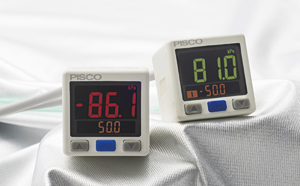

Large digital display with a pressure sensor 31 series

2013/08

2013/09/02

Output by two-color display
Main display: numeric pressure (red-green)
sub-display: set value (orange)
Body compact
body size, width: compact and 30mm: 30mm, height
Lock mechanism
when you make a mistake press the key, preventing erroneous output of the switch
Cost performance was excellent
compared to 30 Series large digital display with a pressure sensor, and success in cost reduction of about 46.5%
In a power saving mode function with power saving 30%
as long as you do not press a button to power-saving mode, the main display is a power-saving mode after 30 seconds
Enhancement optional parts
rear mounting mounting bracket, flat mounting mounting bracket, panel adapter set

Easy to see display with a digital pressure.

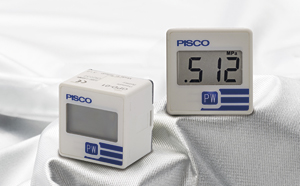

Digital pressure gauge

2013/08

2013/09/02

Body compact
body size, width: compact and 30mm: 30mm, height
IP65: dust and waterproof performance
can be maintained IP65 by using Insert the tube to the air release port
It is equipped with a power saving mode. About three years: battery life
pressure display with one push. Battery life when you have pressure display at a rate of 5 times / the 1st
Time to replace the battery can be checked at a glance
notice the battery level indicator will flash a decrease in battery level
Enhancement optional parts
rear mounting mounting bracket, flat mounting mounting bracket, panel adapter set

Supports high-speed driving of the cylinder. Add φ3mm of lightweight, compact design (eco-type)!

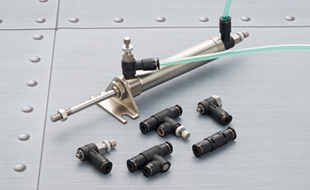

Quick exhaust valve EQ mini type

Now on sale

2013/07

2013/09/03

Depending on the size of the down tube diameter "φ4mm → φ3mm", and 90,000 L reduce air consumption! ! (Per year)
only ● piping member → 36% reduction! ● including cylinder → about 10% reduction!
　※ conditions cylinder / cylinder diameter: φ20mm, stroke: 100mm, one side rod, cylinder actuation year:
　　2,160,000 times, pressure: the case of: (2m pipe length) 0.5MPa.
Renewal of the two types of existing!
The renewed EQY type and EQE type. To eliminate the ledge of the silencer that was curious to tube connection, EQE type, can now be done in smooth piping work.
Cylinder direct mounting type comes up!
I prepare for two types of female thread with throttle and exhaust. Also, can the common exhaust type atmosphere and open the exhaust system by the device to be connected, female type, applicable to a wide range of applications.

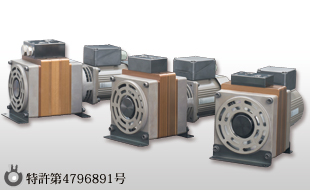

Rotary vacuum pump / RPV064

Now on sale

2013/05

Can not be after

(Low vacuum · 120 ℓ type) debuts quadruple-parallel connection!

High efficiency! It supports a variety of applications degassing, degassing, vacuum packaging, transport and adsorption.

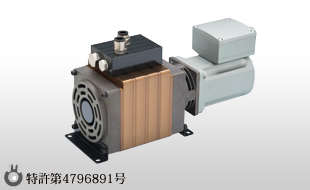

Rotary vacuum pump / RPV06

Now on sale

2013/04

2013/11/29

Energy-saving
and high efficiency of the industry-leading level in the exhaust speed of the motor rated output 1 [W] per.
⇒ 1.0/1.2 [exhaust rate (L / min) / motor rated output (W)] (50/60Hz)
Lightweight and compact
by the adoption of special rotor shape, and space saving.
Low heat
and adopted a forced air-cooled, and achieve low heat generation.
The adoption of the magnet coupling, there is no rotating shaft seal sliding, no heat generated by the seal.
The use of high-efficiency motor, suppressing heat generation of the motor unit.
Low operating noise and low vibration
design by the balance thorough to the rotating part, achieve low operating noise and low vibration.
Long life
durability by the adoption of special surface treatment and super engineering plastics, with excellent self-lubricating, wear resistance.
Providing a small clearance between the fixed cylinder and the rotor, I realize the minimization of the sliding portion and a non-contact structured basically.
The adoption of the magnet coupling, sliding seal unnecessary.
• The maintenance-free due to seal wear.
- By a minimum load to the motor shaft, support the life of the motor.
Low operating noise and low vibration
design by the balance thorough to the rotating part, achieve low operating noise and low vibration.
Low dust generation
and the use of the vacuum for clean grease very good in low dust generation and low volatility, refueling unnecessary.
I realize a low-emitting dust of the sliding portion minimization.
• The suppression of the pollution to the surrounding environment due to abrasion powder scattering such as vane pump.
Environmental and safety design
RoHS compliant CE marking.
Option is enriched
not only a single pump, a variety of options available as one-touch fittings, cleaner exhaust (exhaust sound silencer).

Anti-static type comes up! Ideal air tweezers and small parts assembly.

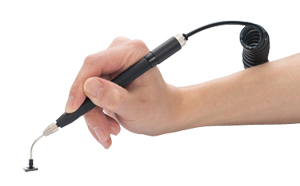

Air tweezers Antistatic Type

Now on sale

2013/01

2013/04/02

Optimum anti-static type comes up the assembly process hate static
surface resistance, 10 ⁴ ~ 10 ⁸ Omega.
Built-in vacuum generator and vacuum pad to the body of the pen
to connect the (ø4 mm) tube, the supply (0.5MPa) compressed air, vacuum generated by the button operation or hole, attracting the small work.
Property holder, available in two type
valve built-in energy-saving and corresponding (VTB), prepared (VTA) inexpensive without valve type noise is small for the flow of air only when used.

Inch size debuts! The use of the polyolefin resins suitable for clean environments.

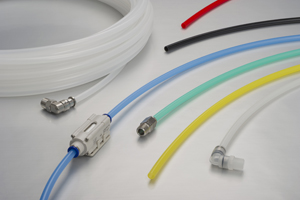

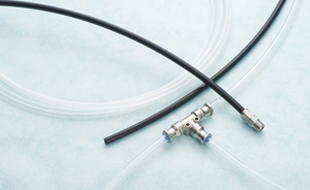

Polyolefin tube / CTA

Now on sale

2013/01

2013/09/12

Provides the hardness of the two types according to the application
CTB is recommended CTA, the compact pipe to ensure the flow rate.
Excellent water resistance
The color prepares a six-color
color: black, clear red, clear yellow, clear green, clear blue, clear white.
Available in two types of packaging specification,
clean air after cleaning and normal packing, can be selected from the clean room packaging and packaged in within (equivalent to ISO Class 6) clean room.

Inch size debuts! The use of the polyolefin resins suitable for clean environments.

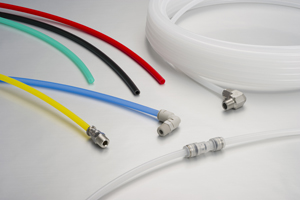

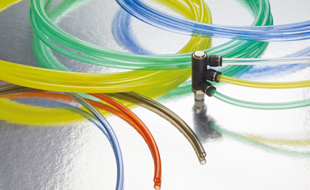

Soft polyolefin tube / CTB

Now on sale

2013/01

2013/09/12

Provides the hardness of the two types according to the application
CTA is recommended to ensure CTB, the flow rate in a compact piping.
Excellent water resistance
The color prepares a six-color
color: black, clear red, clear yellow, clear green, clear blue, clear white.
Available in two types of packaging specification,
clean air after cleaning and normal packing, can be selected from the clean room packaging and packaged in within (equivalent to ISO Class 6) clean room.

Pressure gauge handy type of slim, light weight, and high-performance appeared.

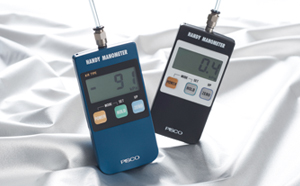

Handy manometer

Now on sale

2012/12

2013/07/29

Easy-to-read display
adopted (LCD display of 3.1 / 2 digit display) large display.
Offer three types of pressure range
lineup (GPH-B) (GPH-S), gauge pressure display continuous Naru圧(low pressure) (GPH-V), absolute pressure display, to use gauge pressure display continuous Naru圧can be selected to suit.
Function is enriched by simple operation
zero adjustment, display hold, auto power OFF. The analog output function is also equipped.
Low-power design
of commercially available batteries (AAA × 2 pieces) use, about 1,000 hours of continuous use.

Ideal for work, such as a thin sheet vinyl.

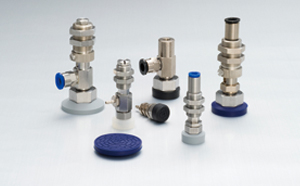

Vacuum pad flat type

Now on sale

2012/11

2013/04/01

Reduce the deformation and wrinkles of work during the attraction
to the suction surface flat, to form a groove.
Corresponds to work a variety of work, including the thin
pad material is, six NBR, silicone rubber, urethane rubber, fluorine rubber, conductive NBR (low resistance type), static-dissipative rubber.
Prepare a nine holder shape,
corresponding to the areas of "non-use copper-based metal," "low-concentration ozone action" is required for the pad holder all "-S3 is also available specification".

It is most suitable for the transport of long work, such as a substrate and semiconductor.

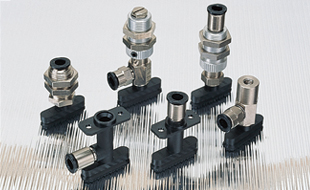

Vacuum pad oval type

2012/08

2013/04/02

Space of the suction surface is compatible with a small work
2mm × 4mm, 3.5mm × 7mm size debuts.
Corresponds to the work transport a variety of environments
add new material is, four types of urethane rubber, fluorine rubber, static dissipative rubber, conductive NBR. Materials are 7 types together urethane rubber existing silicone rubber, conductive rubber (low resistance type).
Prepare 11 kinds holder shape,
corresponding to the field, "low ozone concentration measures," "non-use copper-based metal" is required for the pad holder all "-S3 is also available specification".

Click here to check the exterior dimensions

(which is not shown ※ For additional size, materials, and size when it is combined in the holder will be identical)

Contribute to the compressed air consumption reduction of work adsorption during transport.

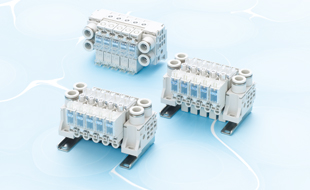

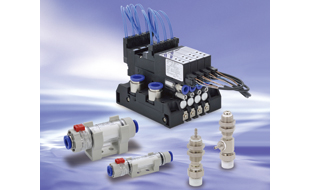

Vacuum pump system corresponding unit VIP

Now on sale

2012/07

2013/04/01

By the deployment of the flow sensor, the adsorption confirmation of small workpiece possible
lineup (an industry first) equipped with a flow sensor type. In addition, No sensor type pressure sensor mounted a conventional type also available.
It is recommended to mount to the head of a small adsorption work transfer device (chip mounter, handler) and semiconductor-related equipment.
Even ultra-compact possible (61.3mm height our minimum!, Depth 56.8mm) vacuum switching of large flow rate
at the time of supply-80kPa, 8.5 ℓ / min [ANR] or more.
Selectable method of vacuum break air flow rate adjustment is
in addition to the vacuum break air flow control with needle type, (0.5MPa supply at the time, inexpensive vacuum break air flow rate fixed type
9.5 ℓ / min [ANR] or more) also available.

I realize high-precision, high-speed, non-contact.

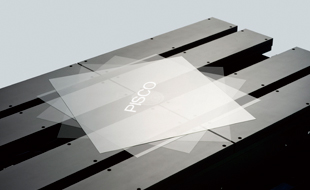

Levitation transport plate

Now on sale

2012/07

2013/04/01

Ideal for levitation transportation of panel
levitation transportation LCD panel, PDP, the solar panel, the inspection process.
Can be used in devices that use chemicals and water
cleaning apparatus, coater, the scribing device.
Compatible with a maximum speed 2m/sec
Significant reduction in running costs
stable levitation at low supply pressure is possible, and achieve low flow rate of consumption.

I realize high-precision, high-speed, non-contact.

Small flow sensor / FUS8

Now on sale

2012/06

2013/04/01

Ultra-compact and ultra-light
(in the case of φ4mm one-touch fitting) 10.7g: width: 8.5mm, Height: 24mm, Length: 41mm, mass
Rich connection method
lineup One-touch fitting, barb fitting, female, a nipple. And can be combined each joint (connection shape).
Ideal for adsorption confirmation
and non-linear flow sensor characteristics ideal for adsorption confirmation.
Mounting method, three types
can be selected from the following three types screw mounting, holder mounting, the sensor head. attaching directly.
Line up the best two-way type in attracting and feeding applications
during adsorption, for confirmation of the break is possible, the two-way type, ideal for attracting and feeding applications.

Water (liquid) available! Body material: PP is ideal for clean environment.

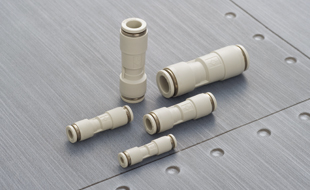

Low operating pressure check valve PP / PCVLU

Now on sale

2012/05

2013/04/01

In areas, "low ozone concentration measures," "Grease," "non-use copper-based metal" is required optimum
metal parts material [] SUS304 / Rubber [materials] Disc seal: FKM, elastic body sleeve: EPDM (option I adopt the change) In the NBR or FKM at.
Check clear (translucent), fluid (liquid) can resin body color
easy confirmation of hygiene.
Operating pressure, the 5kPa
a low operation pressure specifications, can secure the flow rate at a pressure that did not operate in the conventional product.
Reduces noise generation unsprung, than conventional products in structural parts
Available in two types of packaging specification,
clean air after cleaning and normal packing, can be selected from the clean room packaging and packaged in within (equivalent to ISO Class 6) clean room.

Made possible the separable representation, and width: 8.5 mm × total length: 25.4 mm small vacuum switch.

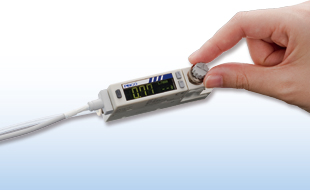

Compact pressure sensor / VUS12

Now on sale

2012/02

2013/04/01

Connector of the lead wire
to improve the wiring work and maintenance of.
Selectable according to the application
pressure taken out three types, output specification 2 type, cable length prepares for five.
Achieve a separable representation
possible using the: indicator and our analog output type (SED-30 format).
Prepare specifications for the field, "low ozone concentration measures," "non-use copper-based metal" is required for the air flow path also
metal parts material is not used copper-based metal, adopted in the HNBR rubber seal material.

Possible to ensure the flow at a pressure that did not work with conventional products.

Low operating pressure check valve / CVLU

Now on sale

2011/10

2013/04/01

Operating pressure from 10kPa to 5kPa
Low concentration ozone reduction products
rubber material is adopted and FKM and HNBR.
Reduce the noise generated from the conventional products
I do not use the spring to structural components.
Lightweight resin type = low-cost

I became easy fluorine resin tube is active in various fields is purchased.

Fluorine resin (FEP) tube / SET

Now on sale

2011/10

2013/04/01

Now easier fluorine resin tube is active in various fields is purchased
chemical resistance of almost the same (PFA) tube fluorine resin of us.
Supports clean room packaging specifications
Tough performance
operating temperature range: -65 ~ 200 ℃

Adsorption can be sure of a small hard work by the pressure sensor and flow management.

Flow sensor / FUS20

Now on sale

2011/10

2013/04/01

Needle valve integrated
a flow rate adjustable needle is integral to the sensor. Time of the piping is not applied, can be space-saving installation.
Panel mountable
panel mounting bracket lineup. It can be mounted close together in one panel opening one, reducing man-hours when several fans are installed, contributing to space saving.
Twin Display / two-color display function
by providing the sub-screen and main screen, and improved operability. In addition, abnormalities in the obvious two-color display.
High precision ± 3% FS or less
I realize FS accuracy ± 3%, allows for accurate flow measurement.
Fast response 50msec following
the adoption of the platinum sensor chip by applying the silicone micro-machining, high-speed response.

Pursuit of compact piping. Lineup with clean clear color system.

Soft polyurethane tube / UC

Now on sale

2011/10

2013/04/01

Ideal for compact pipe
for very soft, piping bending radius can or small attachment to the narrow portion.
Applying a water also can
use the ether-based urethane.
The color prepares the six colors in clear system all
Color: Clear Black, Clear Orange, Clear Yellow, Clear Green, clear blue, clear.
Can also be produced multi-core tube (2-core to 6-core)

Ideal for field-"low ozone concentration measures," "non-use copper-based metal" is required.

Vacuum Equipment "-S3" specification

Now on sale

2011/10

2013/04/01

Compatible models increases, further enhance
-S3 specification new lineup
... vacuum pump system corresponding unit VXP
... small pad holder spring (VPMC, VPMD)
... suction pad marks prevention (flexible with holder)
... positive and negative pressure filter

(VPMC, VPMD) Dimensions of small pad holder spring is here

Various manufacturing process for hate and oil particles.

Clean cleaning Fitting Series /-UC

Now on sale

2011/10

2013/04/01

Vacuum ultrasonic cleaning
after carrying out the vacuum ultrasonic cleaning by HFE (hydrofluoroether), Implementation of vacuum-packed in a clean room.
Both equal each series, the standard type
is set to SUS303 equivalent fittings tube fittings, tube fitting PP type, corrosion resistance. And variations shape, equivalent to the standard type.

Compact, space-saving plumbing. Also in semiconductor-related and secondary battery production line.

SUS303 equivalent minimal joint corrosion resistance

Now on sale

2011/10

2013/04/01

Recommended resistance and corrosion environment, in an atmosphere of chemical
metal body adopts special stainless steel of SUS303 equivalent corrosion resistance. Seal parts adopts PPS with excellent chemical resistance.
Compared to a conventional joint minimal, I realize the compact up to about 15%
In combination with the vacuum tube, ideal for piping of vacuum equipment

Excellent corrosion resistance, It is recommended to pipe market to focus on airtightness.

SUS316 Compression Fitting

Now on sale

2011/10

2013/09/19

Polyurethane tube can also be used
to line up our new polyurethane tube (φ8 ~ φ16mm) for size. (Straight, elbow type only)
Sleeve = unnecessary worry unnecessary
design does not require a sleeve. Therefore, there is no mistake of forgetting or lost with the sleeve.
Most suitable for the piping of clean environment
after cleaning with clean air, and in the packaging in (equivalent to ISO Class 6) clean room. After cleaning with clean air, and packaging at in (equivalent to ISO Class 6) clean room.
To which can be used together with polyurethane tube clean room packaging specifications of our company.

It is most suitable for the piping to the narrow space and a small actuator.

φ2mm one-touch Fittings and Tubing

Now on sale

2011/10

2013/03/29

Ultra-compact
and compact to 20% by volume compared to the mini-type fittings φ4mm. (Compared to our: PL type)
Rich body shape
and support the piping various body shape of 16 types.
4mm small bending radius
is (JIS type), 4mm small bending radius of the tube. I realize a compact piping.

Original text
